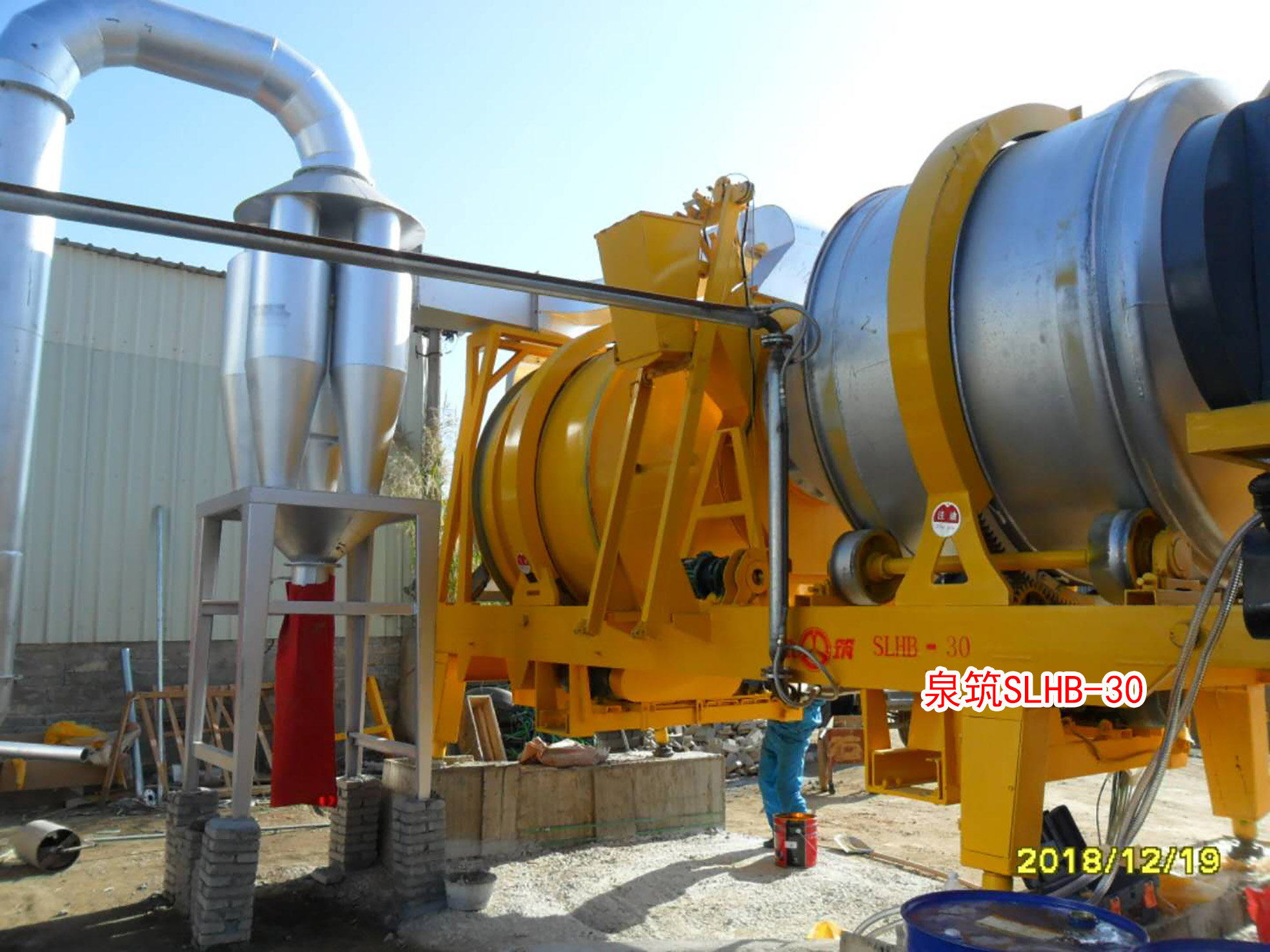

SLHB-30型瀝青混凝土拌和機

（一）產品介紹

我廠研制開發的SLHB-30型移動式瀝青混凝土攪拌設備。整套設備含：礦料提升機、燃燒爐總成、烘干滾筒總成、熱瀝青計量輸送裝置、石粉計量輸送裝置、成品料倉、雙管式除塵裝置、拖掛底盤、行走裝置、電器控制柜等主要部件。主機采用間歇式烘干滾筒與攪拌筒連為整體的拖掛結構形式，整機占地面積小，移場就位安裝周期短，燃料適用范圍廣，具有操作簡單，維護方便，性能穩定可靠，成品料品質好，技術含量高，自動化、標準化程度高等特點，特別適用于高等級瀝青路面的鋪筑施工和養護作業。

一、SLHB-30型具體性能特點如下：

1、主機可整體拖掛移動，安裝就位簡捷方便。

2、采用液壓調整支撐腿，安裝調整省力、省時，穩定可靠。

3、烘干滾筒部件采用厚16Mn鋼制作。

4、雙管旋風除塵裝置，高效除塵。

5、熱瀝青計量輸送裝置采用瀝青泵輸送、液位繼電器計量，油石比準確。

6、礦料計量輸送裝置采用三斗計量方式，可實現電子疊加計量，斗式提升輸送，計量精度高，誤差小。（SLHB-30B型設備配備）

7、電控控制柜關鍵元件均采用全球自動化領域西門子公司產品，自動化集中控制，操作簡便，環境舒適。

8、燃燒爐總成均采用電子自動點火裝置，適用燃料范圍包括：柴油、重油、渣油等可燃油。該系統可實現自動點火、充分燃燒等功能，經濟效益顯著。

9、本設備有效地克服了國內直筒連續式攪拌設備的固有缺陷，包括：

⑴石粉容易散失；

⑵瀝青容易老化；

⑶礦料及瀝青連續計量精度難以保證；

⑷礦料溫度不夠穩定等。

　 (二)、 主要技術性能參數

1、額定生產率：                     30t/h

2、進料斗容量：                     1.1立方米

3、進料重量：                       1500公斤/斗

4、出料溫度：                       120-165℃，可調

5、適用范圍：                       瀝青混凝土、瀝青砂石、瀝青砂

6、燃料消耗：                       柴油5.5-8kg/t混合料；煤 12-15kg/t混合料

7、烘干滾筒轉速：                   16轉/分

8、配套總功率：                     SLHB(Y)-30      61 Kw

SLHB(Y)-30A     71.5 Kw

SLHB(Y)-30B     79.5 Kw

其中：

滾筒驅動功率：                     11 Kw×2

鼓風機功率：                       11 Kw

通風除塵功率：                     7.5/11 Kw（燃油/燃煤）

骨料提升功率：                     7.5 Kw

瀝青泵功率：                       4 Kw×2

石粉提升功率：                     0.8 Kw

成品料倉提升功率：                 7.5 Kw

礦料計量輸送功率：                 5.5 Kw

柴油泵功率:                        1.1+0.55 Kw

空壓機功率：                       5.5 Kw

加熱板:                            0.6 Kw×4(施工前使用)

控制驅動方式：                     集中電控

外形尺寸：                         長×寬×高=13550×13800×7340(mm)

SLHB-30 asphalt concrete mixer

(1) Product introduction

Our factory developed SLHB-30 mobile asphalt concrete mixing equipment. The whole set of equipment includes: mineral lift, combustion furnace assembly, drying drum assembly, hot asphalt metering and conveying device, stone powder metering and conveying device, finished product bin, double pipe dust removal device, drag chassis, walking device, electrical control cabinet and other main components. The main machine adopts the towing structure of the intermittent drying drum and the mixing drum as a whole. The whole machine covers a small area, the installation period of the moving field is short, the fuel is applicable to a wide range, and it has the characteristics of simple operation, easy maintenance, stable and reliable performance, good quality of finished materials, high technical content, high automation and standardization. Especially suitable for high grade asphalt pavement construction and maintenance operations.

1） Specific performance characteristics of SLHB-30 are as follows:

1. The host can be towed and moved as a whole, and the installation is simple and convenient.

2, the use of hydraulic adjustment of the support leg, the installation adjustment is labor-saving, time-saving, stable and reliable.

3, drying drum parts are made of thick 16Mn steel.

4, double pipe cyclone dust removal device, efficient dust removal.

5, the hot asphalt metering and conveying device adopts asphalt pump transportation, liquid level relay measurement, oil stone ratio is accurate.

6, the ore metering and conveying device adopts three bucket metering method, which can achieve electronic superposition metering, bucket lifting transportation, high measurement accuracy and small error. (SLHB-30B equipment)

7, the key components of the electronic control cabinet are all made of Siemens products in the field of global automation, automatic centralized control, easy operation and comfortable environment.

8, the combustion furnace assembly are using electronic automatic ignition device, applicable fuel range including: diesel, heavy oil, residual oil and other fuel. The system can realize automatic ignition, full combustion and other functions, and the economic benefit is remarkable.

9. The equipment effectively overcomes the inherent defects of domestic straight barrel continuous mixing equipment, including:

(1) Stone powder is easy to lose;

(2) Asphalt is easy to age;

(3) It is difficult to guarantee the continuous measurement accuracy of mineral materials and asphalt;

⑷ The mineral temperature is not stable enough.

2） Main technical performance parameters

1, rated productivity: 30t/h

2, hopper capacity: 1.1 cubic meters

3. Feed weight: 1500 kg/bucket

4, discharge temperature: 120-165℃, adjustable

5, scope of application: asphalt concrete, asphalt sand, asphalt sand

6, fuel consumption: diesel 5.5-8kg/t mixture; Coal 12-15kg/t mixture

7, drying cylinder speed: 16 RPM

8, supporting total power: SLHB(Y)-30 61 Kw

SLHB(Y)-30A 71.5 Kw

SLHB(Y)-30B 79.5 Kw

Among them:

Cylinder driving power: 11 Kw×2

Blower power: 11 Kw

Ventilation dust removal power: 7.5/11 Kw (fuel/coal)

Aggregate lifting power: 7.5Kw

Asphalt pump power: 4 Kw×2

Stone powder power: 0.8Kw

Lifting power of finished silo: 7.5Kw

Ore metering transmission power: 5.5Kw

Diesel pump power: 1.1+ 0.55Kw

Air compressor power: 5.5Kw

Heating plate: 0.6Kw ×4(used before construction)

Control drive mode: centralized electric control

Dimensions: Length × width × height =13550×13800×7340(mm)
